Holiday Light Electronics

This is just the basics of the electronics mentioned in my intro to holiday lights post. I’ll expand on this at some point wiht reasoning and more opinions.

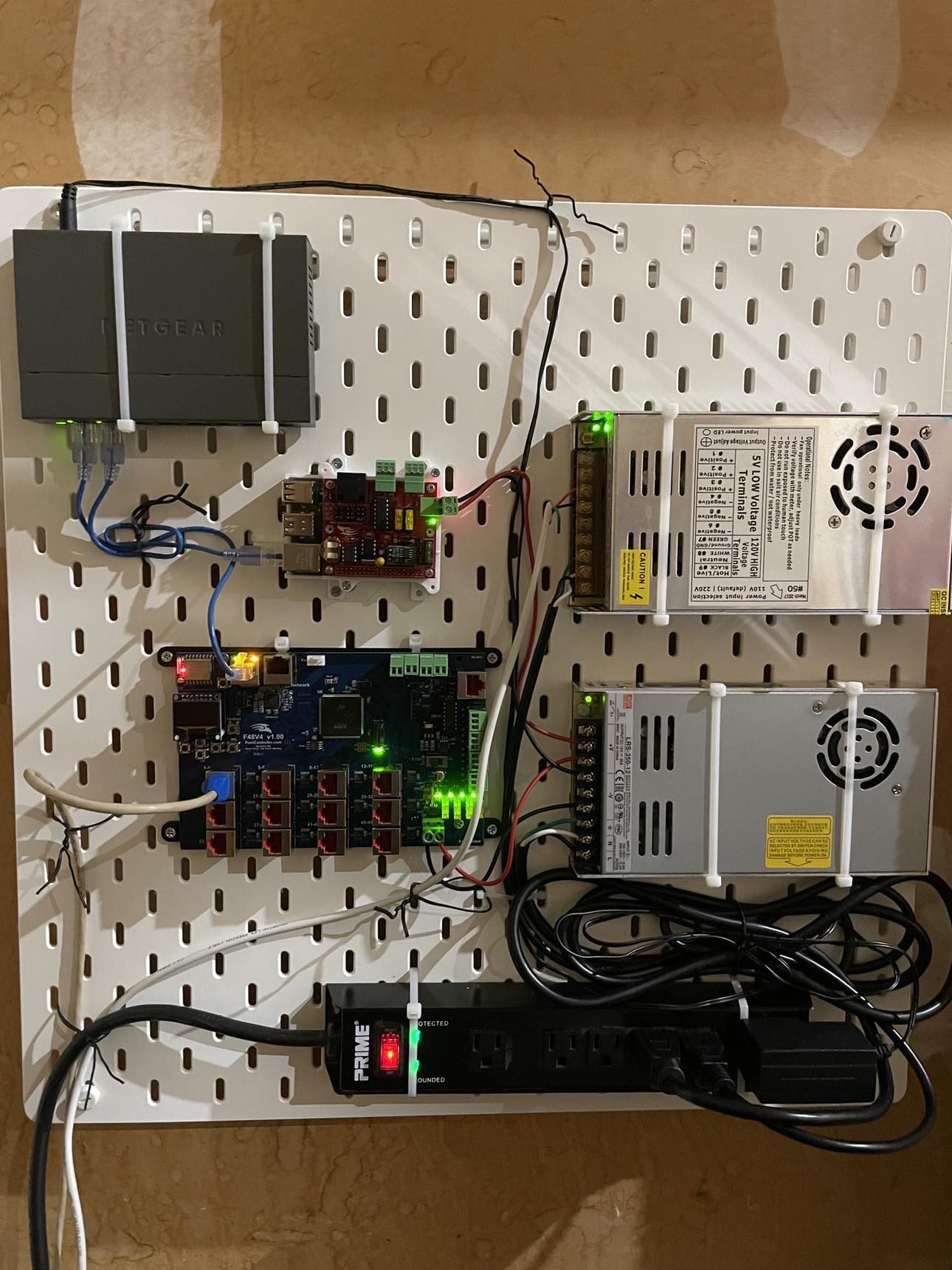

Main Board

Satellite Boards

With the Falcon F48, the main board can run four strands of pixels, and I can have more smaller boards farther away from the main board. Right now I have three of them, but I love how flexible the setup is for future growth.
